Product Dimensions 6"h x 24"w x 17.50"d

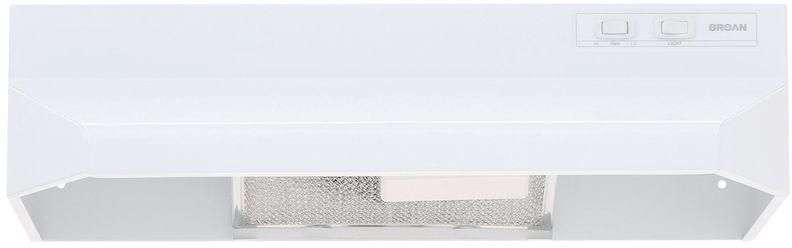

The Broan 40000 series is made for a wide range installations and comes in a variety of appliance matching colors and widths. The durable under cabinet hood installs as 3-1/4 in. x 10 in. ducted opening only and ducts either vertically or horizontally. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. Includes duct adapter with built-in damper.Read More
or
Installs as 3-1/4" x 10" vented only
160 CFM, 6.5 Sone (vertical or horizontal discharge) performance – HVI 2100 Certified
Dishwasher-safe aluminum grease filter (model BP29)
A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
Duct connector with built-in damper included
This range hood can work in an ADA-compliant application
General Specs | |
| Width (in.) | 24 |
| Height (in.) | 6 |
| Depth (in.) | 17.50 |
| Collection | 40000 Series |
| Color | White |
| Color/Finish Name | White |
| Manufacturer Warranty | 1 Year |
| Positioning | Stationary |
| Range Hood Type | Under Cabinet |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 24 |
| Maximum CFM | 160 |
| Voltage | 120 |
| Amp | 2 |
Overview | |
| Sones | 6.5 |
| Light Number Of Levels | 1 |
| Light Bulb Wattage | 75W |
| Light Bulb Recommended Type | A19 |
| Light Bulb Quantity | 1 |
| Filter Quantity | 1 |
| Filter Type | Aluminum |
| Motor Number Of Speeds | 2 |
| Wattage | 240 |
| Switch Control Type | Rocker |
| Duct Connector Size | 3-1/4" x 10" |
| Duct Direction | Horizontal/Vertical |
| Duct Shape | Rectangular |
| Duct Diameter | 3-1/4" x 10" |
| Duct Height Rectangular | 3-1/4" |
| Duct Width Rectangular | 10" |
