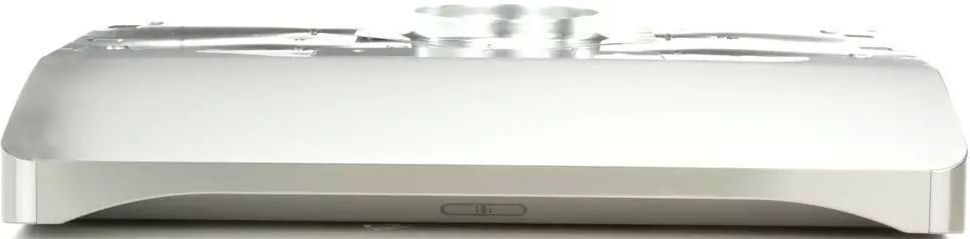

Broan® Alta™ BQDD1 Series 30” Under Cabinet Range Hood-Stainless Steel
At a Glance
Product Dimensions 5"h x 30"w x 22"d
Broan® Alta™ BQDD1 Series 30” Under Cabinet Range Hood-Stainless Steel with 300 cfm and 2-level LED lightingRead More
What We Offer
*STOCK UPDATES DAILYPLEASE CALL TO VERIFY
Get to know this product.
Product Overview
The sculpted lines of Alta™ bring an exciting, new choice to typical range hood shapes. Wide curves, tap-touch capacitive controls and LED lighting present a clean, striking design.
Features & Benefits
- The Captur™ system’s advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
- Bright, two-level LED modules — supported by a 3-year warranty — illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch. See additional information above
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Useful Documents
Specifications
General Specs |
| Width (in.) | 30 |
| Height (in.) | 5 |
| Depth (in.) | 22 |
| Color | Stainless Steel |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Maximum CFM | 300 |
| Voltage | 120 |
| Amp | 0.65 |
| Frequency | 60 |
Construction |
| Chimney: | Fixed |
Display |
| Controls: | Mechanical |
General Features |
| Filter Type: | Deluxe Micro Mesh |
Other |
| Watts: | 78 |
| Number of Lights: | 2 |
| Sones (Noise Level) Rating: | 1.2 |
