Product Dimensions 17.2"h x 28"w x 22"d

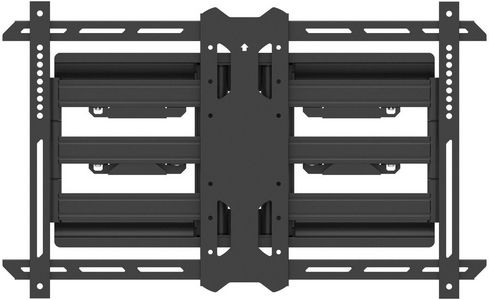

Mount your TV in the harshest of environments with the PDX650SG. This class-leading full-motion outdoor TV mount offers fully articulating, stainless steel arms that let you watch your large TV weighing up to 125 lbs from any angle.Read More
Starting with a proprietary pre-treatment process, all metal surfaces are protected by a galvanized and UV-resistant powder-coated finish to ensure trustworthy operation for years to come. Included stainless steel Security Torx TV screws provide peace of mind while the all-metal cable management system resists degradation from UV exposure unlike plastics which may become brittle over time. Meeting the stringent criteria defined by UL 2442 part 2, PDX650SG is the benchmark for all other outdoor TV mounts.
Galvanized steel construction with stainless steel arms and hardware allows for outdoor installation
Accessible tilt mechanism provides a +15° to -3° viewing angle
80° of swivel in either direction, depending on screen size
Sits 2” (5 cm) from the wall
Extends up to 21.7” (55.3 cm) from the wall
Adjustable horizontal leveling
21” (53.3 cm) dual stud wall plate accommodates up to 16” (40.6 cm) stud spacing
Integrated cable management
Includes manual and all mounting hardware for wood stud and concrete installation
Includes security TV screws to add a layer of protection against unwanted removal
Stainless steel articulating arms, together with galvanized and UV-resistant finishes culminate into an outdoor TV mount that will resist corrosion when left in even the harshest of environments.
By passing rigorous outdoor-specific standards defined by UL 2442 PART 2, PDX650SG outdoor TV mount gives you peace of mind and the ability to secure a TV in any setting or environment.
TV screws with a specialized head that can only be loosened and tightened with the included Security Torx tools prevent tampering and reducing the chance of theft.
The all-metal cable management system resists degradation from UV exposure unlike plastics which may become brittle over time.
The full-motion articulating arm design gives you the ability to tilt, swivel, and extend any TV weighting up to 125 lbs towards your viewing position while avoiding glare.
Disclaimer: TV not included
General Specs | |
| Product Weight (lbs.) | 23.1 |
| Tilt | Yes |
| Depth (in.) | 22 |
| Width (in.) | 28 |
| Height (in.) | 17.2 |
| Mount Type | Full Motion (Articulating) |
| TV Size's up to (in.) | 75 |
| Outdoor Approved | Yes |
| Weight Capacity (lbs.) | 125 |
| Mounting Location | Wall |
| Compatible Vesa Sizes | 100x100 - 600x400 |
| Manufacturer Warranty | 5 Year |
| Color Finish Name | Black |
| Shipping Depth (in.) | 29.4 |
| Shipping Width (in.) | 15 |
| Shipping Height (in.) | 3.1 |
| Number Of Mounts | 1 |
