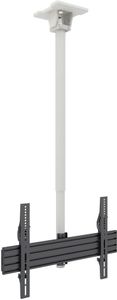

The CM600 TV Ceiling Mount is engineered to ensure a quick installation on both flat and sloped ceilings. Capable of swinging up to 90°, its telescoping extension pole provides 23” of height adjustment and 360° of rotation, allowing you to position your TV exactly where you want it.Read More
$229.99
Save $60.00
Ends Jul 27
Along with adjustable leveling screws, its mounting brackets feature four discrete tilt options, giving you the ability to angle your TV independent of the pole. Tilt it up to 15° forward to improve line-of-sight, or 6° backward to compensate for potential lean. Unobstructed cable management is also provided through the entire length of the mount, keeping your cables safe and out of sight.
The detachable mounting plate can be easily installed to any wood stud or concrete ceiling. Simply slide the extension pole into place and secure it to complete the installation.
Adjust the mounting plate up to 90° to account for sloped ceilings and support beams, or to install the mount vertically on a wall.
The telescoping extension pole provides up to 23” of height adjustment, ensuring your TV is positioned at an ideal level.
Along with 360° of rotation, the CM600 offers four discrete tilt options. In 5° increments, angle your TV up to 15° forward to improve line-of-sight. To compensate for lean, the brackets can also be tilted 6° backward.
The extension pole’s hollow core provides an unobstructed path to route your cables, while an opening in the mounting plate allows them to continue through the ceiling for a truly professional setup.
Fits most fl at panel TVs from 37” to 70”
Supports TVs up to 110 lb (50 kg)
Accommodates VESA sizes from 75x75 to 600x400
Accessible tilt mechanism provides +15° to -6° of tilt
360° of swivel
Height adjustable from 42.7” to 66.3” (108.5 to 168.5 cm) from ceiling
Adjustable horizontal leveling
Single and dual stud mounting plate
Integrated cable management
Ceiling and wall mountable
Anodized aluminum and solid steel construction with durable powder coated fi nish
Includes manual and all mounting hardware for wood stud and concrete installation
Five year manufacturer’s warranty
Shipping box weight: 20.9 lb (9.5 kg)
Shipping Box Dimensions: 41.5” x 8.2” x 4.8” (105.5 x 20.8 x 12.1 cm)
Product Weight: 19.8 lb (9.0 kg)
General Specs | |
| Product Weight (lbs.) | 19.8 |
| Tilt | Yes |
| Color | White |
| Mount Type | Full Motion (Articulating) |
| Low Profile | No |
| Outdoor Approved | No |
| Smart Compatible | No |
| Wifi Capable | No |
| TV Size's up to (in.) | 70 |
| Weight Capacity (lbs.) | 110 |
| Mounting Location | Ceiling |
| Compatible Vesa Sizes | 75×75 to 600×400 |
| Manufacturer Warranty | 5 Year |
| Color Finish Name | White |
| Number Of Mounts | 1 |
Features | |
| Extension | 42.7” to 66.3” (108.5 to 168.5 cm) from ceiling |
| Swing | 90° |
| Tilt | +15° to -6° |
| Material | Anodized aluminum and solid steel construction with durable powder coated finish, Adjustable horizontal leveling, Cable management |
General | |
| Includes | Installation Manual; All mounting hardware for wood stud and concrete installation |
| Warranty | 5 Years |
Weights And Measurements | |
| TV Sizes | 37” to 70” |
| Weight Allowances | 110 lb (50 kg) |
| VESA Sizes | 75×75 to 600×400 |
| Shipping Box Weight | 20.9 lb (9.5 kg) |
| Shipping Box Dimensions | 41.5” x 8.2” x 4.8” (105.5 x 20.8 x 12.1 cm) |
| Product Weight | 19.8 lb (9.0 kg) |
